EL-W Series VFD

Applications

• Edge banding machine
• Logistic conveyor
• Material handling
• Constant pressure pump

Features:

• Compact, simple and durable design.
• Multi-speed operation and control mode: digital panel, external terminal and Modbus communication.
• Multi-pump control; PID Control.
• Support one drive with two motors in parallel and Time Out Detection function.
• High overload capacity, 150% rated current for 1 min.
• Certification: CE, RoHS, GB12668.3

Range: Single Phase – 0.025HP to 3HP

Range: Three Phase – 1HP to 5HP

EL Series VFD

Applications

Small size pump & fan, blowing machine, conveyer belt, simple DIY processing equipment

Features:

• Output frequency: 0.1~600Hz
• 3 points adjustable V/f curve
• Built-in PID feedback control
• RFI-switch for IT mains
• Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
• Use RS-485 communication interface (RJ-45) with Modbus protocol
• Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
• Complete protection function.

Range: Single Phase – 0.025HP to 3HP

Range: Three Phase – 0.5HP to 5HP

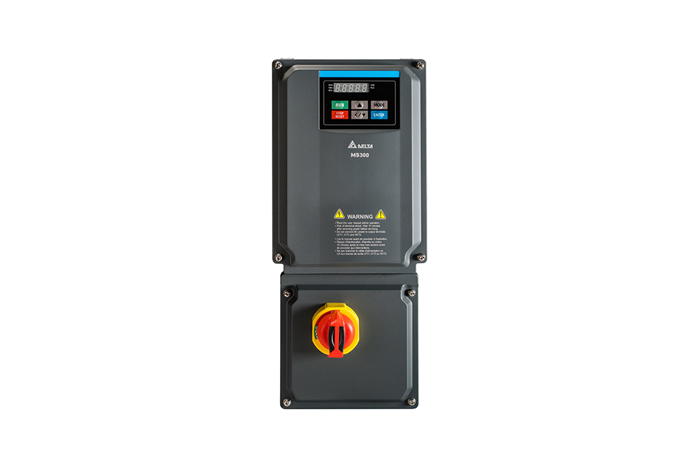

MS300 Series VFD

Applications

Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors

Features:

• Supports Open loop control of IM and PM motors
• Output frequency:
  Standard models: 0 to 599 Hz
  High speed models: 0 to 1,500 Hz (V/f control for IM motor only)
• Dual rating design:
  120% for 60 seconds for Normal Duty (ND)
  150% for 60 seconds for Heavy Duty (HD)
• Built-in PLC program with 2K steps capacity
• Built-in brake choppers for the entire series
• Removable 5-digit LED keypad for remote operation
• Safety standard compliance: Safe Torque Off (SIL2/PLd)
• Multi-motor Control，built-in four IM motor control parameters
• Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
• One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
• One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
• New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
• Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINE.

Range: Single Phase – 0.5HP to 3HP

Range: Three Phase – 0.5HP to 30HP

ME300 Series VFD

Applications

Fans & pumps, conveyors, blowing machines, packing machines, wood working machines

Features:

• Supports IM / IPM /SPM motors and VF / SVC controlrs
• Dual rating design:
  -Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds
  -Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds
• Up to 200% rated starting torque at 3 Hz
• 2 set of motor parameter for multi-motor control
• Supports high speed pulse and PWM signal input
• Built-in single /multi-pump function
• Built-in braking choppers for the entire series
• Optional EMC filter for 1-phase 230V(C2), 3-phase 460V(C3) models
• Optional Safe Torque Off (SIL2/PLd) model
• 100% PCB coating for circuit(IEC 60721-3-3 class 3C3) for harsh environment.

Range: Single Phase – 0.5HP to 3HP

Range: Three Phase – 0.5HP to 10HP

E Series VFD

Applications

Smaller cranes; washing machines; treadmilsl; robot arm of injection machine (clamp); elevator; grinding machine; drilling machine; wood machine; webbing loom; air conditioner for large buildings; water supply system for large buildings, etc.

Features:

• Output frequency: 0.1~600Hz
• Modular & compact design
• Built-in PLC function
• Built-in EMI filter (230V 1 phase / 460V 3 phase)
• Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and CANopen)
• RFI-switch for mains
• Easy DC BUS sharing
• Flexible extension
• Complete Protection

Range: Single Phase – 0.25HP to 3HP

Range: Three Phase – 0.5HP to 30HP

C2000+ Series VFD

Applications

Extruders, rubber millers, injection molding machines, pipe bending machines, conveyance systems, winding machines, bridge cranes, stage lifting systems, glass tempering furnaces, electromagnetic stirrers

Features:

• Heavy-duty overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current; sensorless vector control of IM / PM / SynRM motors
• IP55 fans, efficient heat sink and Class 3C3 conformal PCB coating
• Built-in PLC (10k steps) and remote I/O integration for CANopen / Modbus master stations
• Positioning control, master / slave torque control, electromagnetic energy traction control, and more
• Communication cards (optional): EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen.

Range: Three Phase – 1HP to 650HP

CP2000 Series VFD

Applications

Fixed-displacement pumps (fix flow and fix time), building automation, factory automation, HVAC drives, cooling pumps, cooling towers and general motor applications.

Features:

• With a built-in 10K steps Delta PLC allows user to execute distributional control and independent control when connecting to a network system. Delta CP2000 series drives provide you the intelligent control possibility beyond your imagination.
• The calendar function allows user to program the PLC procedure, the ON/OFF in chronological order, the daylight saving time and etc.
• A wide range of models to fulfill the demands of different industries.
• The modularized design eases the maintenance and expansion.
• High-speed communication interfaces with Modbus protocol and BACnet protocol built in. Diverse communication options are available for you: the BACnet IP, PROFINET, ProfiBUS-DP, the DeviceNet, the Modbus TCP, the Ethernet-IP and the CANopen Cards.
• Special PCB coating design (Printed Circuit Board) for enhancing environmental tolerance.
• Complied with global safety standards: CE, UL and cUL
• Run fire mode while emergency to have uninterrupted smoke releasing and pressure adding
• Multi pumps control at fixed amount, fixed time circulating control. Able to control 8 pumps at the same time.

Range: Three Phase – 30HP to 650HP
